Thematic Tabbed Widgets

Cristian Antohe

Last Updated: 10/07/13

Table of Contents

1 The jQuery Tabbed Widgets Plugin
2 Integrating the tabbed widget javascript code with Thematic
3 Adding a bit of style

Tabbed widget areas for Thematic

Tabbed widgets for WordPress themes have been around since WordPress it self. They are a perfect way to save on vertical space and add a bit of interaction with the users.

There are two classic ways of implementing the tabbed widgets.

Creating a hard coded widget and using the jQuery Cycle plugin. This means you can’t easily modify the content of the tabs unless you open the widget file.
Using a tabbed widget plugin. While this is ok for some users it just ads a lot extra code that doesn’t justify the end.

Luckily there is a optimized way of doing things. Write a bit of javascript that converts any default thematic widget area into a tabbed widget area. The title of the widgets placed in you widget area will automatically become the widget tabs.

The jQuery Tabbed Widgets Plugin

This piece of code comes from a friend of mine, David Turton. It was initially written for a different html structure, so that means the code I’ll post here will be easily modified to support any WordPress widget areas and transform them into a tabbed widget area.

(function($) {

	$.fn.dttabs = function(options) {

		var options = $.extend({
			widgetid : '#secondary',
			fade : null,
			tabTitleReference : null,
			interval : null,
			startTab : 1,
			tabContainerName : 'tab-items'
		}, options);

		return this.each(function() {

			var $this = $(this),
				divCount = $this.children('li').length,
				tabContainer = '

‘ + heading + ‘

‘; else tabContainer += ‘

‘ + i + ‘

‘; } else tabContainer += ‘

‘ + i + ‘

‘; }; tabContainer += ‘

';
				$(options.widgetid).prepend(tabContainer);

				var $container = $('#' + options.tabContainerName);

				$container
					.find('li:nth-child(' + options.startTab + ')')
						.addClass('tab-selected')
					.end()
					.find('a')
						.click(function() {
							var $a = $(this);

							var num = $a.attr('rel');
							if( $this
									.children('li')
									.eq(num - 1)
									.is(':visible')
							) return false; // user is already on selected tab

							$container
								.find('li.tab-selected')
								.removeClass('tab-selected');

							$a.parent().addClass('tab-selected');

							if( options.fade ) {
								$this
									.children('li')
									.hide()
									.eq(num - 1)
									.fadeIn(options.fade);
							}

							else {
								$this
									.children('li')
									.hide()
									.eq(num -1)
									.show();
							}

							return false;
						});

				// auto change tabs
				if( options.interval ) {
					var i = options.startTab;

					setInterval(function() {

						if( !$this.hasClass('hovered') ) {
							$container
								.find('a')
								.eq(i)
								.trigger('click');
							i++;
							if( i === divCount ) i = 0;
						}

					}, options.interval);
 				}

		}); // end each

	}

})(jQuery);

This is the jQuery plugin and now all we need to do is to initiate our tabbed widget.

<script type="text/javascript">// <![CDATA[
jQuery(document).ready(function() {

	jQuery('#secondary>.xoxo').dttabs({
		widgetid : '#secondary',
		fade : 1000,
		tabTitleReference : '.widgettitle',
		interval : null,
		startTab : 1,
		tabContainerName : 'tab-items'
	});

});
// &#93;></script>

If we change #secondary with #primary then the Primary Aside widget will be transformed into a tabbed widget area.

Integrating the tabbed widget javascript code with Thematic

Next we need to add these two javascript pieces of code to our child theme. Add the following code to functions.php of your child theme for Thematic.

function add_js_to_header(){
	?&gt;<script type="text/javascript" src="&lt;?php bloginfo(">// <![CDATA[
/dttabs.js'>
// &#93;></script><script type="text/javascript">// <![CDATA[
jQuery(document).ready(function() {

	jQuery('#secondary>.xoxo').dttabs({
		widgetid : '#secondary',
		fade : 1000,
		tabTitleReference : '.widgettitle',
		interval : null,
		startTab : 1,
		tabContainerName : 'tab-items',
	});

});
// &#93;></script><!--?php
}
add_action('wp_head', 'add_js_to_header');
</pre-->

Adding a bit of style

The basic functionality is there. However we still need to add a bit of css to the mix or we’ll have a bad looking tabbed widget 🙂 .

This css code goes inside style.css of your child theme.

/*
	Tabed Widget Area #secondary
*/

#secondary .widgettitle{
	display:none; /* The title will be in the tabs. We don't need this anymore. */
}
#secondary  #tab-items{
	border-bottom:1px solid #cccccc;
	margin:0;
	padding:0;
}
#secondary  #tab-items li{
	display:inline;
}
#secondary  #tab-items li a{
	font-weight:bold;
	text-decoration:none;
	padding:3px 10px;
	display:inline-block;
	margin-bottom:-1px;
}
#secondary  #tab-items li.tab-selected a{
	background:#fff;
	border:1px solid #ccc;
	border-bottom:none;
}
#secondary .xoxo{
	padding:10px;
	border:1px solid #ccc;
	border-top:none;
}
#secondary .xoxo .xoxo{
	padding:0;
	border:none;
}

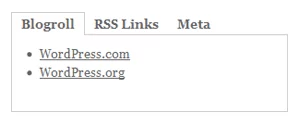

And now we have a tabbed widget for Thematic!

The javascript for this short tutorial was adapted from TutsPlus premium tutorials.
